Binary Star DS-1700T (+Heater)

Discover

The Double-Sided Printing Revolution

Introducing the Double-Sided Large Format Dye Sublimation Printer—an innovation that transforms printing into an effortless, high-speed experience. Say goodbye to manual errors and hello to streamlined efficiency, all while enjoying vibrant, scratch-resistant prints that maintain their brilliance in various environments, perfect for eye-catching promotional materials.

Available exclusively through us in North America, this cutting-edge technology sets your business apart with its unmatched quality and reliability. Elevate your printing capabilities and embrace a new standard of precision and speed. Upgrade to the Double-Sided Large Format Dye Sublimation Printer and revolutionize how your business creates, promotes, and succeeds.

Features

Advanced Feeding and Take-up

Utilizing magnetic powder, it ensures constant tension control for precise feeding and take-up. Featuring 110mm double rubber-covered rollers, it can adjust seamlessly to varying material thicknesses and tensions.

Ink Mist Collection

Efficiently captures micro-particle ink from the air during printing. With two collection devices per carriage, totalling four, it ensures superior air quality and enhances operational efficiency.

Automatic Cleaning

Our advanced device combines automatic nozzle ink press and cleaning, ensuring reliable moisturizing when not in use. Effortlessly maintain peak performance and extend equipment life.

Tech Specs

Print Speed

Printhead : Epson i3200-A1 (4)

Sketch mode (2pass)

635×600 dpi – 70m²/h


Production mode (3pass)

317×1800 dpi – 45m²/h


High Resolution mode (4pass)

635×1200 dpi – 35m²/h


Dimensions

Media Max Diameter

350mm


Printing width

1700mm


Printing Thickness

≤3mm

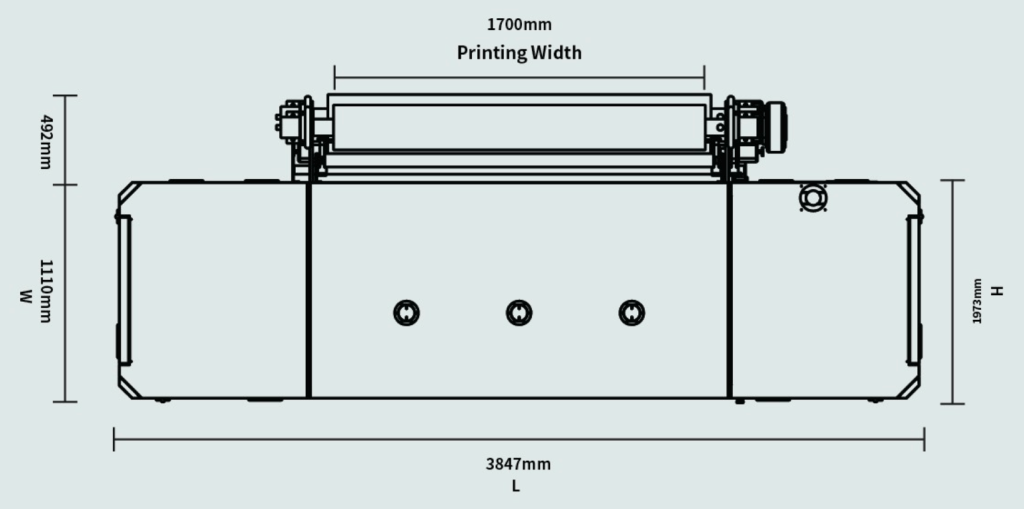

Machine Size
(L x W x H)

3847 x 1782 x 1937mm


Package Size
(L x W x H)

3857 x 1792 x 1947mm


Net Weight

1550kg


Ink

Type

Normal sublimation ink
High temperature disperse ink


Color

C / M / Y / K


Software

RIP Software

Maintop / PHOTOPRINT


Image Format

TIFF / JPG / EPS / PDF


Operation System

Windows 7/10 64 bits (Flagship Version)


Computer Configuration

Hard disk: SATA500
Hard disk format: NTFS
CPU: Inter i5
RAM: 8G – 16G


Data Transfer

USB


Operational

Drying

Synchronous drying before and after printing. The temperature can be adjusted according to different fabrics.


Ink Purge Control System

Patented automatic print-head cleaning, ink scraping, and moisturizing system


Media Type

Chemical fibre
Banner cloth
Light box cloth
etc.


Power

7KW (including heating system power: 5KW)


Power Supply

AC220V ± 10% 50HZ


Operation Environment

Humidity: 40% – 70%
Temperature: 68 – 86°F
