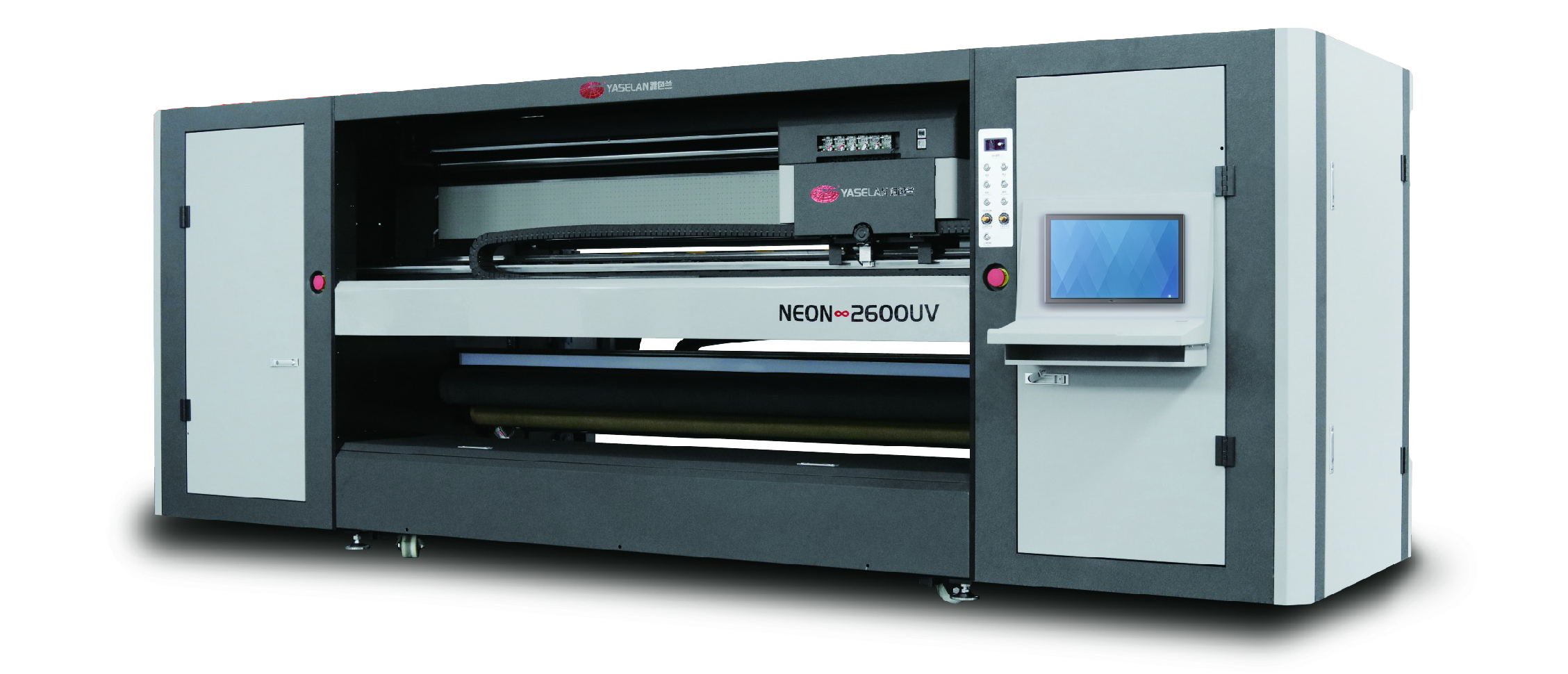

Neon ∞ 2600UV

Discover

The Power of UV Double-Sided Printing

Introducing our UV Double-Sided Printer—an innovation that revolutionizes printing with unparalleled durability and efficiency. Bid farewell to manual errors and embrace a streamlined workflow that enhances efficiency, all while enjoying durable prints that stand the test of time.

With instant ink curing and reduced energy consumption, our UV Double-Sided Printer delivers long-lasting results. Colors maintain their integrity under sunlight, ensuring durability for robust applications.

Available exclusively through us in North America, this advanced technology sets your business apart with its reliability and longevity. Elevate your printing standards and embrace a new era of efficiency and precision. Upgrade to the UV Double-Sided Printer and discover how it transforms your production capabilities to new heights.

Features

Intelligent Ink Supply

Single carriage double negative pressure for automatic pressure adjustment, ensuring stable ink flow and reliable continuous operation.

Advanced Nozzle Moisturizing

Automatic moisturizing with auxiliary flash spray, manual ink press, and self-leveling waste ink collection for effortless, hands-free maintenance.

Water-Cooled Platform

Five-way water circulation maximizes cooling efficiency, prevents deformation from high temperatures, and ensures consistent printing performance.

Tech Specs

Print Speed

Printhead : KM1024i(8-16H CMYK) or KM1024i(12-24H CMYK LC LM)

Sketch mode (4pass)

one group – 40m²/h
two group – 80m²/h


Production mode (6pass)

one group – 30m²/h
two group – 60m²/h


High Resolution mode (8pass)

one group – 20m²/h
two group – 40m²/h

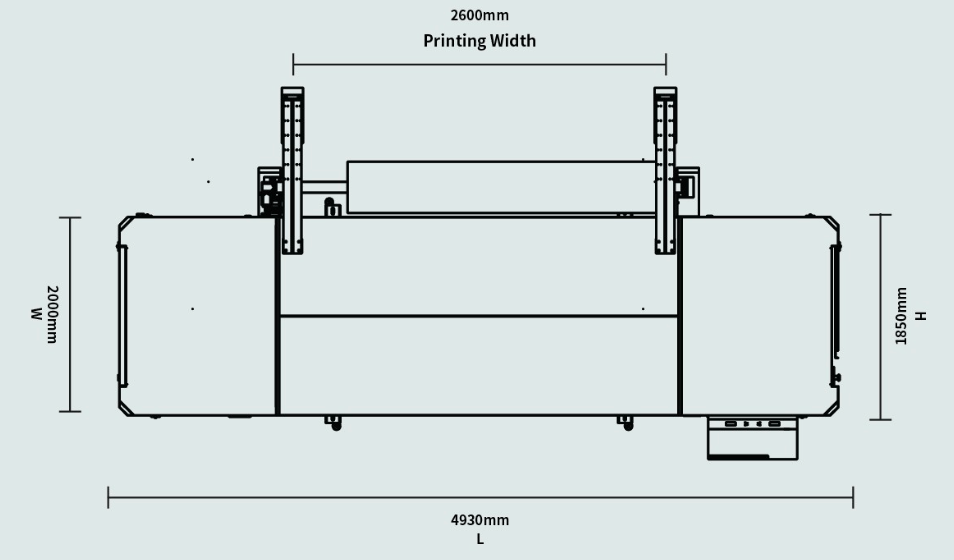

Dimensions

Media Max Diameter

360mm


Printing width

2600mm


Printing Thickness

≤2mm


Machine Size
(L x W x H)

4930 x 2000 x 1850mm


Package Size
(L x W x H)

5200 x 1850 x 2250mm


Net Weight

3000kg


Ink

Type

Environment-friendly UV ink


Color

C / M / Y / K / LM / LC


Software

RIP Software

PHOTOPRINT


Image Format

TIFF / JPG / EPS / PDF


Operation System

Windows 7/10 64 bits (Flagship Version)


Computer Configuration

Hard disk: SATA500
Hard disk format: NTFS
CPU: Inter i5
RAM: 8G – 16G


Data Transfer

USB 3.0


Operational

Drying

LED-UV lamp curing


Moisture Control

Patented automatic ink pressing moisturizing cleaning system


Media Type

All UV flex banner
Coated banner
Reflective transfer film
Back interlining cloth
PE light box panel


Power

7KW (including cooling system power: 2KW)


Power Supply

AC220V ± 10% 50HZ


Operation Environment

Humidity: 40% – 70%
Temperature: 68 – 86°F


Operation Air Pressure

0.6MPA
