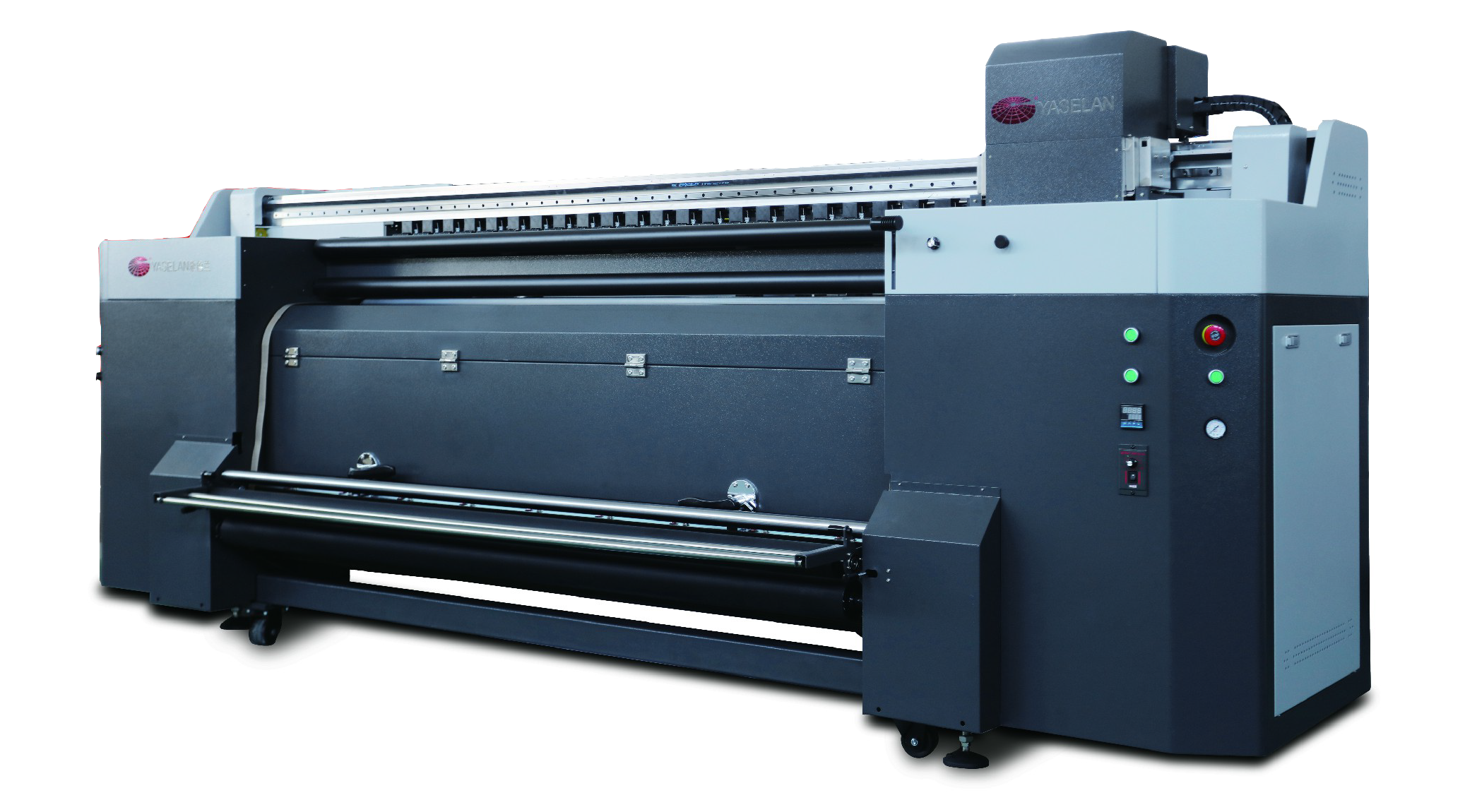

KT-S2000

Ideal for companies needing a digital fabric inkjet printer for apparel production, including athletic wear, this machine features Epson i3200 print heads in 3-head or 4-head configurations. Designed for high-temperature disperse dye ink, it supports both 4-color (CMYK) and 8-color (CMYKLkLmRB) setups. The printer can handle fabrics up to 78 inches wide. For wider materials, up to 126 inches, consider the KT-S3200 model.

This machine features a built-in infrared dryer and occupies minimal space with dimensions of 145 inches in length, 40 inches in width, and 56 inches in height. It also includes heat knives for vertical cutting of printed products, enhancing production workflow efficiency.

Tech Specs

Print Speed

Printhead : EPSON i3200 (3H)

2pass

110m²/h


3pass

90m²/h


4pass

60m²/h


Printhead: EPSON i3200 (4H)

2pass

130m²/h


3pass

110m²/h


4pass

80m²/h


Dimensions

Printing Width

2000mm


Printing Thickness

2mm


Machine Size
(L x W x H)

3680 x 1000 x 1420mm


Package Size
(L x W x H)

3770 x 1080 x 1660mm


Net Weight

750kg


Ink

Type

Sublimation ink


Color

C / M / Y / K


Software

RIP Software

Maintop / PHOTOPRINT


Image Format

TIFF / JPG / EPS / PDF


Operation System

Windows 7/10 64 bits (Flagship Version)


Computer Configuration

Hard disk: SATA500
Hard Disk Format: NTFS
CPU: Inter i5/i7
RAM: 8GB – 16GB


Data Transfer

YCP / IP network interface / USB


Operational

Drying

Integrated infrared curing


Ink Purge Control

Auto ink purge, ink scrape, and moisturizing


Media Type

Flag cloth
Banner
Chemical Fibre
Polyester
etc.


Power

7000W (including infrared curing power: 6000W)


Power Supply

AC220V ± 10% 50HZ 7KW


Operation Environment

Humidity: 40% – 70%
Temperature: 68 – 86°F
